Database Normalization

This article/tutorial will explain what database normalization is, why you need it and how to normalize a data model. We will use a simple example to explain the normalization rules.

What is Database Normalization

Database normalization is a technique of organizing the data in the database. Normalization is a formal approach that applies a set of rules to associate attributes with entities. Normalization is used when designing a database.

Database normalization is mainly used to:

  • Eliminate reduntant data.
  • Ensure data is logically stored (results in a more flexible data model).

Normalization of a data model consists of several steps. These steps are called normalization rules. Each rule is referred to as a normal form (1NF, 2NF, 3NF). The first three forms are the most important ones. There are more than 3 normal forms but those forms are rarely used and can be ignored without resulting in a non flexible data model. Each normal form constrains the data more than the previous normal form. This means that you must first achieve the first normal form (1NF) in order to be able to achieve the second normal form (2NF). You must achieve the second normal form before you can achieve the third normal form (3NF).

0NF: Not Normalized

The data in the table below is not normalized because it contains repeating attributes (contact1, contact2,...).

not normalized customer data

Not normalized customer data.

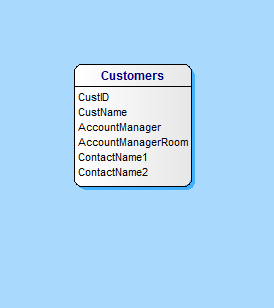

not normalized entity in data model

Not normalized (0NF) table/entity in a data model.

1NF: No Repeating Groups

In the first normal form, an entity contains no repeating groups and all attributes must have a unique name.

Entities may only consist of two dimensions. A Customer has multiple Contacts (contact1, contact2,...). This is why we must create a new entity for the contacts. A data model containing attributes with names like contact1, contact2 etc, is a bad database design. Repeating attributes make your data less flexible and make it difficult to search for data.

customer entity in 1nf (first normal form)

Customers.

contact entity in 1nf

Contacts.

2NF: Eliminate Redundant Data

An entity is in the second normal form if it has achieved the first normal form and if all of its attributes depend on the complete (primary) key. An entity with a primary key consisting of only one attribute is in the second normal form (2NF).

In our example, the key is CustID + ContactID. If we remove the ContactID attribute we ensure that all attributes in the Customer entity depend on the new primary key CustID. We create a new entity CustomerContact for the relationship between Customer and Contact.

customer entity in second normal form (2nf)

Customers.

customer contacts relationship

CustomerContacts.

contact as a separate entity

Contacts.

3NF: Eliminate Transitive Dependency

An entity is in the third normal form (3NF) if it is in the second normal form and all of its attributes are not transitively dependent on the complete primary key. Transitive dependency exists when a non-prime attribute depends on other non-prime attributes rather than depending upon the prime attributes or primary key. In other words: The third normal form means that no attribute within an entity is dependent on an non-prime attribute that, in turn, depends on the primary key.

In our example, attribute AccountManagerRoom is transitive dependent on attribute AccountManager. A new entity AccountManager must be created so that we can remove attribute AccountManagerRoom from the Customer entity. The Customer entity is now in the third normal form (3NF).

customers entity in 3NF

Customers.

customers contacts data

CustomerContacts.

normalized contacts entity (3nf)

Contacts.

new accountmanager entity

AccountManagers.

Data Model After Normalization

This is the data model after database normalization (3NF):

data model after database normalization

Data model after database normalization.
